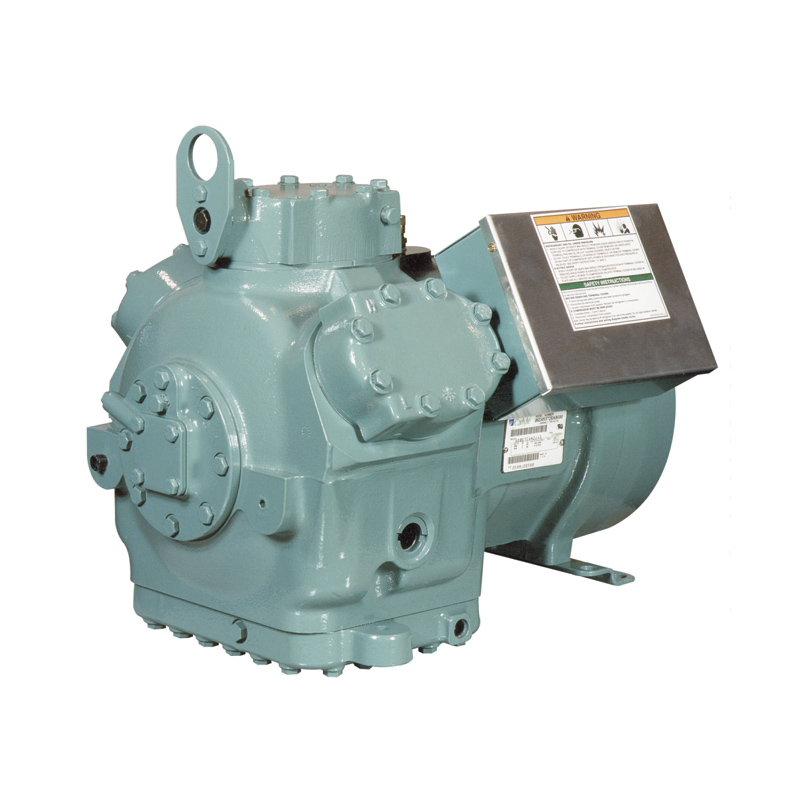

> 06DR0130 Carrier Cold Room Semi hermetic Compressor
| Carlyle OEM Model Number | Carlyle Service Replacement Model | Temp. Range R404a | Motor Size HP | CFM | CFH | No. of Cyl |
No. of
Heads
|
Potential Unloading Stages | Oil Charge Pints |
Low Temp.
EER
R404a @
-25/100/65
|
Med Temp.
EER
R404a @ 20/110/65
|
| 06DM8080… | 06DM8086… | 0 to 50 | 3 | 8.0 | 480 | 2 | 1 | 0 | 3 | 8.4 | |
| 06DR1090… | 06DR1086… | -40 to 0 | 2 | 8.7 | 522 | 2 | 1 | 0 | 3 | 5.4 | |
| 06DR0130… | 06DR0136… | -40 to 0 | 3 | 13.0 | 786 | 4 | 2 | 1 | 4.5 | 5.3 | |
| 06DM3130… | 06DM3136… | 0 to 50 | 5 | 13.0 | 786 | 4 | 2 | 1 | 4.5 | 9.3 | |
| 06DR3160… | 06DR3166… | -40 to 25 | 5 | 15.9 | 954 | 4 | 2 | 1 | 4.5 | 5.4 | 9.3 |
| 06DM3160… | 06DM3166… | 0 to 25 | 5 | 15.9 | 954 | 4 | 2 | 1 | 4.5 | 9.0 | |
| 06DR7180… | 06DR7186… | -40 to 0 | 5 | 18.3 | 1100 | 4 | 2 | 1 | 5.5 | 5.5 | |
| 06DA8182… | 06DS8186… | 0 to 50 | 6 1/2 | 18.3 | 1100 | 4 | 2 | 1 | 5.5 | 8.6 | |
| 06DR8200… | 06DR8206… | -40 to 40 | 6 1/2 | 20.0 | 1200 | 4 | 2 | 1 | 5.5 | 5.6 | 9.4 |
| 06DR7240… | 06DR7246… | -40 to 25 | 6 1/2 | 23.9 | 1435 | 6 | 3 | 2 | 8 | 5.6 | 9.2 |
| 06DR7250… | 06DR7256… | -40 to 25 | 6 1/2 | 23.9 | 1435 | 6 | 3 | 2 | 8 | 5.6 | 9.2 |
| 06DA8242... | 06DS8246... | 0 to 50 | 7 1/2 | 23.9 | 1435 | 6 | 3 | 2 | 8 | 8.6 | |
| 06DA8252… | 06DS8256… | 0 to 50 | 7 1/2 | 23.9 | 1435 | 6 | 3 | 2 | 8 | 8.6 | |
| 06DR2280… | 06DR2286… | -40 to 30 | 7 1/2 | 28.0 | 1680 | 6 | 3 | 2 | 8 | 5.7 | 9.2 |
| 06DA3282… | 06DS3286… | 0 to 50 | 10 | 28.0 | 1680 | 6 | 3 | 2 | 8 | 8.6 | |
| 06DR3370… | 06DR3376… | -40 to 25 | 10 | 37.1 | 2225 | 6 | 3 | 2 | 8 | 5.7 | 9.2 |
| 06DM3370… | 06DM3376… | 0 to 25 | 10 | 37.1 | 2225 | 6 | 3 | 2 | 8 | 8.7 | |
| 06DA5372… | 06DA5376… | 0 to 50 | 15 | 37.1 | 2225 | 6 | 3 | 2 | 8 | 8.7 | |
| 06DR5410… | 06DR5416… | -40 to 30 | 15 | 41.0 | 2460 | 6 | 3 | 2 | 8 | 5.0 | 9.0 |
