| Model | THZL-15AF | THZL-20AF | THZL-25AF | THZL-30AF | THZL-40AF | THZL-50AF | THZL-60AF | ||
| Capacity | KW/hr | 50Hz | 44.15 | 59.08 | 71.72 | 87.2 | 113.58 | 135.49 | 181.68 |
| Kcal | 50Hz | 37965 | 50805 | 61683 | 74992 | 97675 | 116521 | 156249 | |
| Temperature Control Range | 5℃ to normal temperature (0℃ can be customized) | ||||||||
| Power Supply | 5N-380V 50Hz | ||||||||
| Total Power | KW | 13.85 | 18.95 | 25.05 | 28.30 | 37.15 | 47.80 | 55.60 | |
| Control Method | Capillary | ||||||||
| Compressor | Type | Hermetic scroll compressor or piston compressor | |||||||
| Quantity | 3 | 2 | 2 | 3 | 4 | 4 | 6 | ||
| Power(kw) | 11.25 | 15.00 | 18.75 | 22.00 | 30.00 | 37.50 | 45.00 | ||
| Refrigerant | R22 | ||||||||

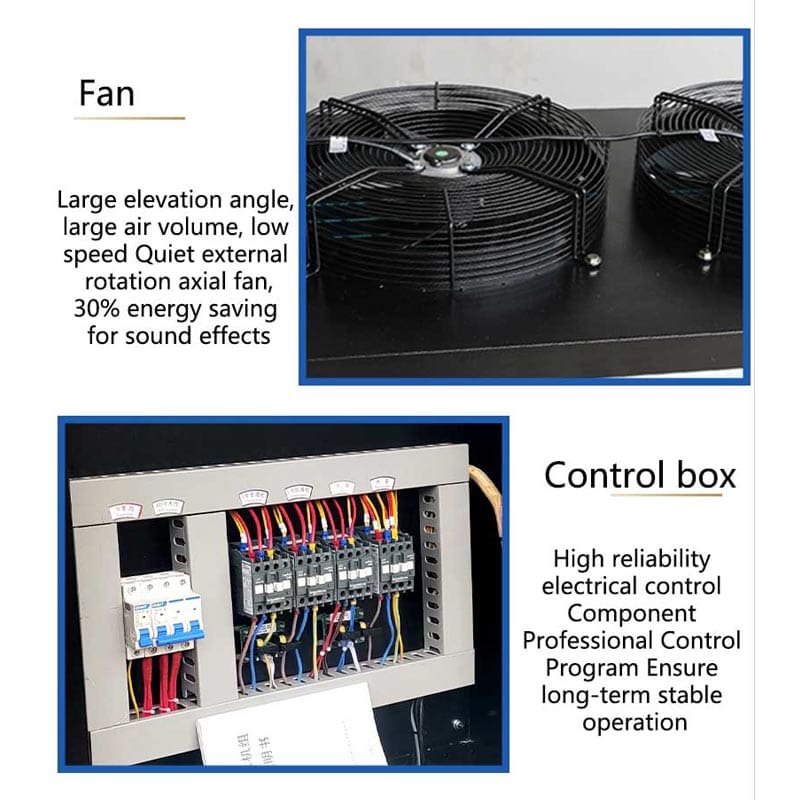

| Fan | Total Air Volume (m³/h) | 15000 | 21600 | 32400 | 32400 | 43200 | 57000 | 64800 | |
| Quantity | 2 | 2 | 3 | 3 | 4 | 6 | 6 | ||
| Total Power(kw) | 1.1 | 1.7 | 2.55 | 2.55 | 3.4 | 4.8 | 5.1 | ||

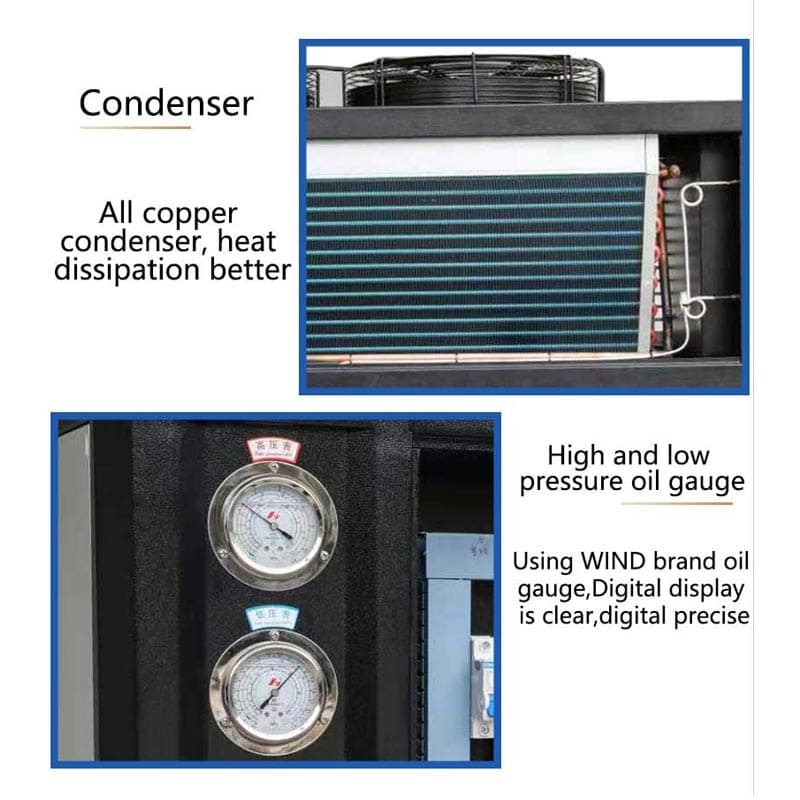

| Condenser | Type | High-efficiency copper tube sleeve corrugated aluminum fin | |||||||
| Evaporator | Water Volume (m³/h) | 7.60 | 10.16 | 0.32 | 0.32 | 0.61 | 0.66 | 0.72 | |
| Capacity(L) | 195 | 280 | 340 | 340 | 250 | 250 | 250 | ||
| Caliber(OUTER) | DN50 | DN65 | DN80 | DN80 | DN80 | DN100 | DN100 | ||
| Circulating Pump | Power(kw) | 1.50 | 2.25 | 3.75 | 3.75 | 3.75 | 5.5 | 5.5 | |
| Flow(L/MIN) | 340 | 500 | 800 | 800 | 800 | 1000 | 1000 | ||
| Head(M) | 17 | 17 | 18 | 18 | 18 | 20 | 20 | ||
| Size | L/mm | 1750 | 1900 | 2370 | 2370 | 2300 | 2300 | 2370 | |
| W/mm | 850 | 1000 | 1120 | 1120 | 1900 | 1900 | 1900 | ||
| H/mm | 1600 | 1870 | 1950 | 1950 | 2000 | 2000 | 2000 | ||
| Weight | KG | 480 | 590 | 790 | 880 | 1000 | 1280 | 1420 | |
| Notice: The above specifications and parameters are all measured manually, and the actual product shall prevail. | |||||||||
