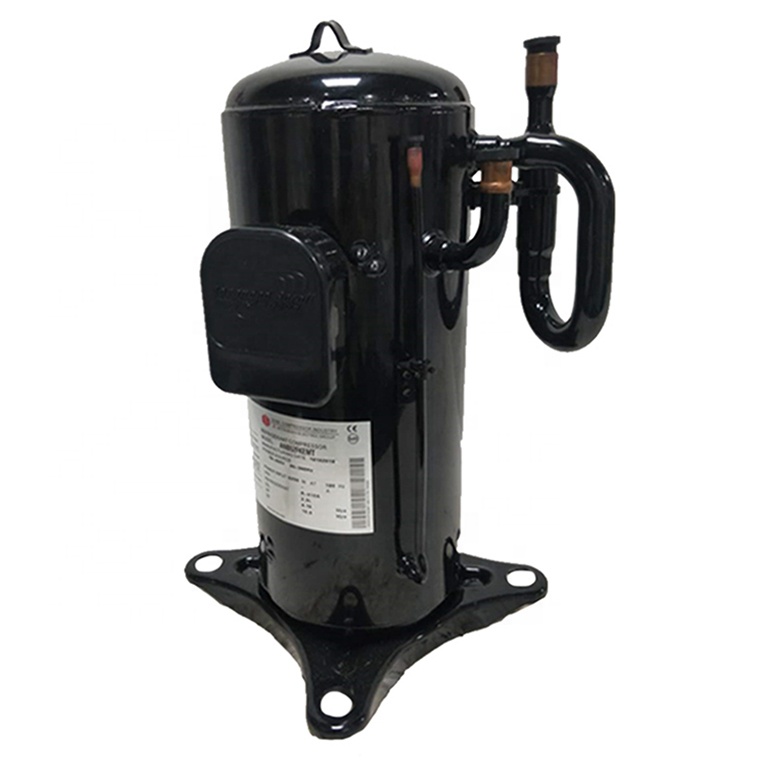

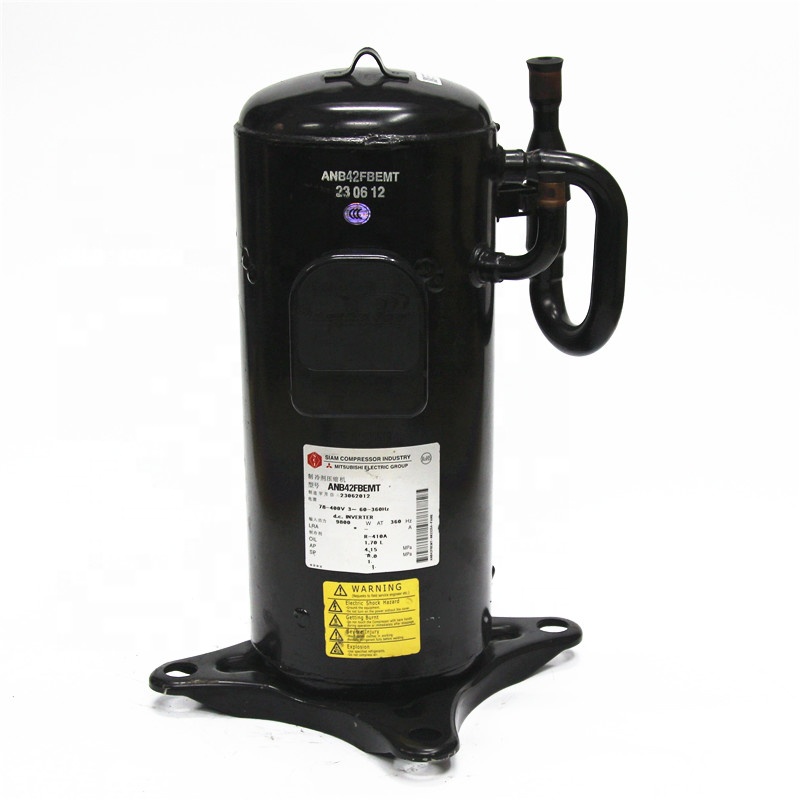

> ANB42FBSMT Mitsubishi Refrigeration Scroll Compressor
| Models | Capacity Range | Performance at 60 rps | Weight | |||||||
| (min ~ max) | Capacity | Input | COP. | EER. | ||||||
| Watt | Kcal/hr | BTU/hr | W | BTU/hr | Watt | Amps | (w/w) | Btu/hr*w | (kgs.) | |
| Cooling Long Piping | ||||||||||
| a) DC Inverter 200 Volt | ||||||||||
| ANB33FBSMT(20-120RPS) | 3,220~21,700 | 2,770~18,660 | 10,990~74,020 | 10,800 | 36,850 | 3,240 | 15.80 | 3.33 | 11.37 | 33.4 |
| ANB42FBSMT(20-120RPS) | 4,260~27,100 | 3,660~23,310 | 14,540~92,470 | 13,700 | 46,750 | 4,080 | 19.60 | 3.36 | 11.46 | 33.4 |
| b) DC Inverter 400 Volt | ||||||||||
| ANB33FBTMT(20-120RPS) | 3,290~21,500 | 2,830~18,490 | 11,230~73,360 | 10,800 | 36,850 | 3,300 | 12.40 | 3.27 | 11.17 | 33.4 |
| ANB42FBTMT(20-120RPS) | 4,150~27,300 | 3,570~23,480 | 14,160~93,150 | 13,900 | 47,427 | 4,160 | 15.20 | 3.34 | 11.40 | 33.4 |
| ANB52FKFMT(20-120RPS) | 5,450~33,100 | 4,690~28,470 | 18,600~112,940 | 17,200 | 58,686 | 5,250 | 18.50 | 3.28 | 11.18 | 34.0 |
| ANB66FKFMT(20-100RPS) | 6,613 ~33,782 | 5,685~29,045 | 22,563~115,266 | 21,900 | 74,723 | 6,500 | 15.50 | 3.37 | 11.50 | 38.4 |
| ANB66FBZMT(20-120RPS) | 6,900~40,120 | 5,933~34,497 | 23,540~136,800 | 22,000 | 75,064 | 6,500 | 23.70 | 3.38 | 11.55 | 38.4 |
| Cooling Short Piping | ||||||||||
| a) DC Inverter 200 Volt | ||||||||||
| ANB33FEUMT(20-120 rps) | 3,220,21,700 | 2,770~18,660 | 10,990~74,020 | 10,800 | 36,900 | 3,240 | 15.80 | 3.33 | 11.37 | 33.0 |
| ANB42FEUMT(20-120 rps) | 4,260~27,100 | 3,660~23,310 | 14,540~92,470 | 13,700 | 46,750 | 4,080 | 19.60 | 3.36 | 11.46 | 33.0 |
| b) DC Inverter 400 Volt | ||||||||||
| ANB33FEVMT(20-120RPS)) | 3,290~21,500 | 2,830~18,490 | 11,230~73,360 | 10,800 | 36,900 | 3,300 | 12.40 | 3.27 | 11.17 | 33.0 |
| ANB42FEVMT(20-120RPS) | 4,150~27,300 | 3,570~23,480 | 14,160~93,150 | 13,900 | 47,440 | 4,160 | 15.20 | 3.34 | 11.40 | 33.0 |
| ANB52FFTMT(20-120RPS) | 5,450~33,100 | 4,690~28,470 | 18,600~112,940 | 17,200 | 58,960 | 5,250 | 18.50 | 3.28 | 11.18 | 33.8 |
| ANB66FLHMT(20-100RPS) | 6,613~33,782 | 5,685~29,045 | 22,563~115,266 | 22,000 | 75,064 | 6,500 | 15.50 | 3.38 | 11.55 | 37.6 |
| ANB66FLJMT(20-120RPS) | 6,585~34,801 | 5,661~29,921 | 22,468~118,743 | 21,500 | 73,358 | 6,500 | 19.60 | 3.31 | 11.29 | 37.6 |
| ANB78FVAMT(15-120RPS) | 5,746~49,305 | 4,940~42,394 | 19,606~168,235 | 25,400 | 86,665 | 7,640 | 26.00 | 3.32 | 11.34 | 39.3 |
| ANB87FVLMT(15-120RPS) | 6,514~55,408 | 5,601~47,642 | 22,226~189,059 | 28,000 | 95,536 | 8,500 | 30.50 | 3.29 | 11.24 | 39.8 |
|
Note: 1. Testing Condition : ARI
2. For variety of oil quantity, please contact sales representative, Min - Max oil quantity is between 900-2300 cc.
|
||||||||||
| Heating Long Piping | ||||||||||
| a) DC Inverter 400 Volt | ||||||||||
| ANE33FQFMT(20-120RPS) | 2,700~17,100 | 2,321~14,703 | 9,220~58,399 | 8,550 | 29,173 | 3,040 | 11.60 | 2.81 | 9.60 | 32.9 |
| ANE42FQFMT(20-120RPS) | 2,800~22,100 | 2,407~19,002 | 9,562~75,475 | 10,730 | 36,611 | 3,730 | 13.70 | 2.88 | 9.82 | 32.9 |
| ANE52FKGMT(20-120RPS) | 4,000~26,000 | 3,439~22,355 | 13,660~88,749 | 12,950 | 44,185 | 4,680 | 16.93 | 2.77 | 9.44 | 34.2 |
| ANE66FKHMT(20-100RPS) | 8,098~42,438 | 6,963~36,490 | 27,631~144,804 | 18,780 | 64,077 | 5,880 | 14.30 | 3.19 | 10.90 | 37.6 |
| Heating Short Piping | ||||||||||
| a) DC Inverter 400 Volt | ||||||||||
| ANE33FPBMT(20-120RPS) | 2,759~17,183 | 2,373~14,771 | 9,417~60,767 | 8,550 | 29,173 | 3,040 | 11.60 | 2.81 | 9.60 | 31.9 |
| ANE42FPBMT(20-120RPS) | 2,852~22,111 | 2,450~19,010 | 9,724~75,439 | 10,730 | 36,611 | 3,730 | 13.70 | 2.88 | 9.82 | 31.9 |
| ANE52FLBMT(20-120RPS) | 4,027~26,068 | 3,456~22,406 | 13,716~88,916 | 12,950 | 44,185 | 4,680 | 16.93 | 2.77 | 9.44 | 33.3 |
| ANE66FLCMT(20-100RPS) | 8,098~42,438 | 6,963~36,490 | 27,631~144,804 | 18,780 | 64,077 | 5,880 | 14.30 | 3.19 | 10.90 | 37.6 |
|
Note: 1. Testing Condition : Heating
2. For variety of oil quantity, please contact sales representative, Min - Max oil quantity is between 900-2300 cc.
|
||||||||||
| Medium Temp. | ||||||||||
| ANB33FKJMTS(20-120RPS) | 1,731~11,508 | 1,488~9,895 | 5,906~39,266 | 5,700 | 19,448 | 2,720 | 10.90 | 2.10 | 7.15 | 33.5 |
| ANB42FKJMTS(20-120RPS) | 2,282~15,075 | 1,962~12,962 | 7,787~51,438 | 7,150 | 24,396 | 3,400 | 13.20 | 2.10 | 7.18 | 33.5 |
| ANB52FKPMTS(20-120RPS) | 2,925~18,377 | 2,515~15,801 | 9,981~62,705 | 8,850 | 30,196 | 4,200 | 15.80 | 2.11 | 7.19 | 33.5 |
| ANB66FVAMTS(15-120RPS) | 2,580~22,304 | 2,218~19,178 | 8,803~76,104 | 11,800 | 40,262 | 5,290 | 17.80 | 2.23 | 7.61 | 38.9 |
| ANB78FVAMTS(15-120RPS) | 3,031~27,137 | 2,606~23,334 | 10,342~92,595 | 13,900 | 47,427 | 6,250 | 20.60 | 2.22 | 7.59 | 38.9 |
|
Note: 1. Testing Condition : Medium Temp.
2. For variety of oil quantity, please contact sales representative, Min - Max oil quantity is between 900-2300 cc.
|
||||||||||
