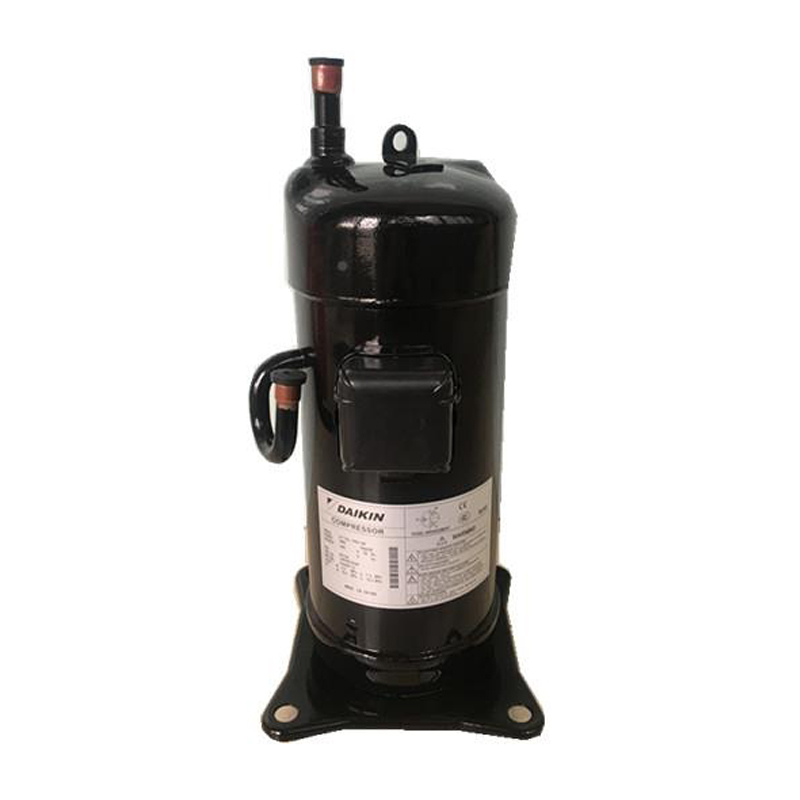

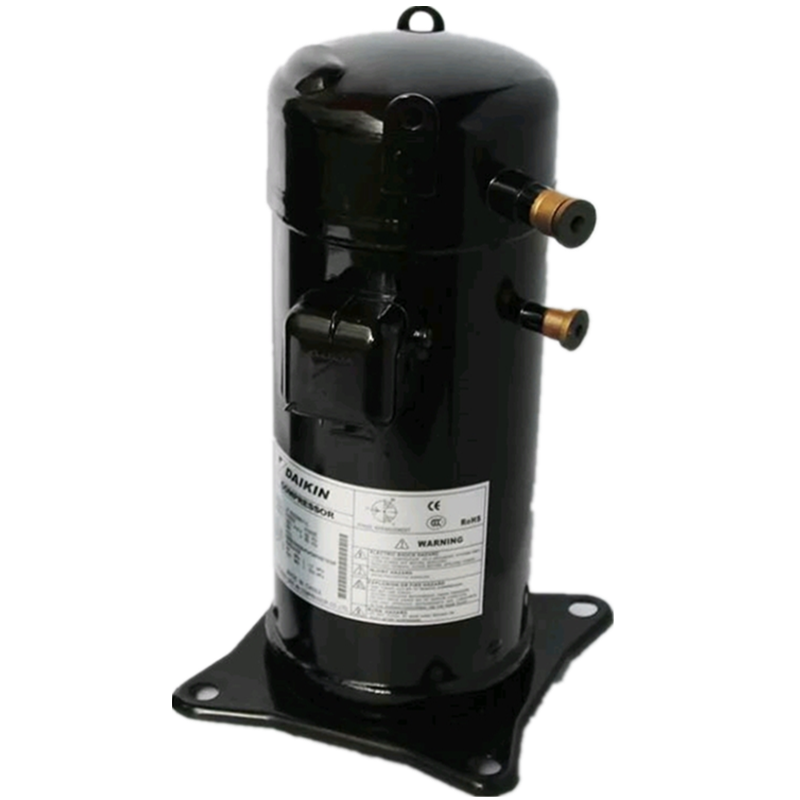

| Model | JT125 |
| Brand | DAIKIN |
| Type | Scroll Compressor |
| Condition | New |
| Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Retail, Food Shop, Energy & Mining, Food & Beverage Shops |
| After Warranty Service | Video technical support, Online support |
| Local Service Location | Saudi Arabia, Indonesia, Pakistan, South Korea, Sri Lanka |
| Showroom Location | CHINA |
| Video outgoing-inspection | Provided |
| Place of Origin | China |
| Refrigerant R22 | |||||||||||
| HP | Voltage | Model | Capability | Pipe Connection | |||||||
| Measuring Power | Capacity | Input Power | Eletric Current | COP | Displacement |
Suction Pipe (mm) |
Exhaust Pipe (mm) |
||||
| KW | BTU/H | KW | A | W/W | cm3/r | ||||||
| 3 | 220V/50Hz 单相 | JT90GABV1L | 220V/50Hz | 8.41 | 28700 | 2.56 | 11.9 | 3.3 | 45.8 | Φ22.1-Φ22.25 | Φ16-Φ16.15 |
| 3 | JT95GABV1L | 220V/50Hz | 9.07 | 91100 | 8.03 | 13.7 | 3.3 | 49.4 | Φ22.1-Φ22.25 | Φ16-Φ16.15 | |
| 3 | JT100GABV1L | 220V/50Hz | 9.33 | 102000 | 8.94 | 15.2 | 3.31 | 49.8 | Φ22.1-Φ22.25 | Φ16-Φ16.15 | |
| 4 | JT125GA-V1 | 220V/50Hz | 11.7 | 106200 | 9.24 | 15.7 | 3.33 | 63.2 | Φ22.1-Φ22.25 | Φ16-Φ16.15 | |
| 4 | 380-415V/三相50Hz | JT125GABY1 | 380V/50Hz | 11.7 | 39900 | 3.44 | 6 | 3.4 | 63.2 | Φ22.1-Φ22.25 | Φ16-Φ16.15 |
| JT125GA-Y1 | 380V/50Hz | 11.7 | 39900 | 3.44 | 6 | 3.4 | 63.2 | Φ22.1-Φ22.25 | Φ16-Φ16.15 | ||
| 5 | JT160GA-Y1 | 380V/50Hz | 14.6 | 49800 | 4.3 | 7.5 | 3.4 | 79.2 | Φ22.1-Φ22.25 | Φ16-Φ16.15 | |
| JT160GABY1 | |||||||||||
| 5.5 | JT170GA-Y1 | 380V/50Hz | 15.6 | 53200 | 4.59 | 8.1 | 3.4 | 84 | Φ22.1-Φ22.25 | Φ16-Φ16.15 | |
| 4 | 220V三相50/60Hz | JT125GABTAL | 220V/60Hz | 13.9 | 47400 | 4.09 | 12 | 3.4 | 63.2 | Φ22.35-Φ22.5 | Φ16-Φ16.15 |
| 5 | JT160GABTAL | 220V/60Hz | 17.4 | 59400 | 5.12 | 15.2 | 3.4 | 79.2 | Φ22.35-Φ22.5 | Φ16-Φ16.15 | |
| 5.5 | JT170GABTAL | 220V/60Hz | 18.6 | 63500 | 5.47 | 16.1 | 3.4 | 84 | Φ22.35-Φ22.5 | Φ16-Φ16.15 | |
| 3 | 380V三相50Hz | JT90GABY1L | 380V/50Hz | 8.41 | 28700 | 2.47 | 4.36 | 3.4 | 45.8 | Φ22.35-Φ22.5 | Φ16-Φ16.15 |
| 3 | JT95GABY1L | 380V/50Hz | 9.07 | 30900 | 2.67 | 4.62 | 3.4 | 49.4 | Φ22.35-Φ22.5 | Φ16-Φ16.15 | |
| 4 | JT125GABY1L | 380V/50Hz | 11.7 | 39900 | 3.44 | 6 | 3.4 | 63.2 | Φ22.35-Φ22.5 | Φ16-Φ16.15 | |
| 4.5 | JT150GABY1L | 380V/50Hz | 13.7 | 46700 | 4.03 | 7.3 | 3.4 | 74.3 | Φ22.1-Φ22.25 | Φ16-Φ16.15 | |
| 5 | JT160GABY1L | 380V/50Hz | 14.6 | 49800 | 4.3 | 7.5 | 3.4 | 79.2 | Φ22.1-Φ22.25 | Φ16-Φ16.15 | |
| 5.5 | JT170GABY1L | 380V/50Hz | 15.6 | 53200 | 4.59 | 8.1 | 3.4 | 84 | Φ22.1-Φ22.25 | Φ16-Φ16.15 | |
| 5 | JT132GHBY1L | 380V/50Hz | 12.4 | 42300 | 3.65 | 6.1 | 3.4 | 67 | Φ22.1-Φ22.25 | Φ16-Φ16.15 | |
| 11.9 | 40600 | 3.14 | 5.4 | 3.8 | 67 | Φ22.1-Φ22.25 | Φ16-Φ16.15 | ||||
| 5 | JT140GHBY1L | 380V/50Hz | 12.9 | 44000 | 3.8 | 6.59 | 3.4 | 70 | Φ22.1-Φ22.25 | Φ16-Φ16.15 | |
| 12.3 | 42000 | 3.29 | 5.87 | 3.74 | 70 | Φ22.1-Φ22.25 | Φ16-Φ16.15 | ||||
| 5 | JT140GHSY1L | 380V/50Hz | 12.9 | 44000 | 3.8 | 6.33 | 3.4 | 70 | Φ22.1-Φ22.25 | Φ16-Φ16.15 | |
| 12.3 | 42000 | 3.29 | 5.55 | 3.74 | 70 | Φ22.1-Φ22.25 | Φ16-Φ16.15 | ||||
