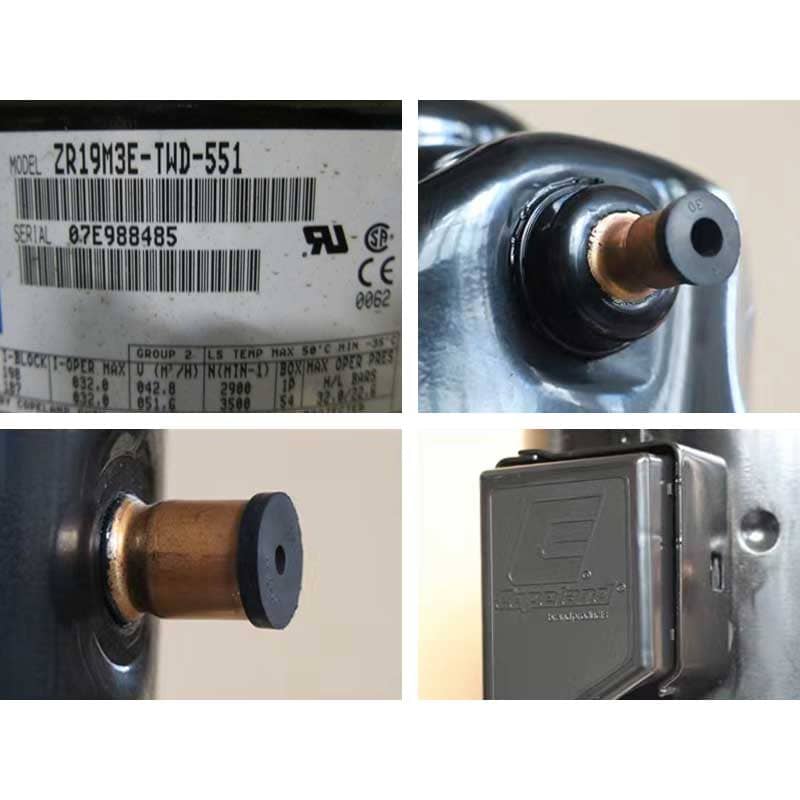

> ZR19M3-TWD-551/522/561/591 Copeland Air Conditioning Scroll Compressor
| Model |
Volt support (V/Phase) |
Displacement
(cc/rev)
|
Horse Power
(HP)
|
Cooling capacity
(Btu)
|
Input Power
(W)
|
Rated Load Amps
(A)
|
Locked Rotor
Amps:(A)
|
Replacement Oil Charge (L) |
| ZR61KC-TFD-522 |
380V/460V50Hz /60Hz;3P |
82.6 | 5 | 61880 | 5400 | 11 | 63 | 1.95 |
| ZR72KC-TFD-522 |
380V/460V50Hz /60Hz;3P |
98.1 | 6 | 73500 | 6250 | 13 | 75 | 1.77 |
| ZR81KC-TFD-522 |
380V/460V50Hz /60Hz;3P |
107.8 | 6.8 | 82000 | 6950 | 15 | 100 | 1.77 |
| ZR84KC-TFD-522 |
380V/460V50Hz /60Hz;3P |
113.6 | 7 | 85500 | 7300 | 15 | 100 | 2.51 |
| ZR94KC-TFD-522 |
380V/460V50Hz /60Hz;3P |
127.2 | 7.8 | 96500 | 8200 | 16 | 95 | 2.51 |
| ZR108KC-TFD-522 |
380V/460V50 -60Hz;3P |
142.9 | 9 | 109000 | 9200 | 17 | 114 | 3.25 |
| ZR125KC-TFD-522 |
380V/460V50Hz/ 60Hz;3P |
167.2 | 10 | 128000 | 10900 | 19 | 125 | 3.25 |
| ZR144KC-TFD-522 |
380V/460V50Hz/ 60Hz;3P |
190.9 | 12 | 146000 | 12300 | 22 | 125 | 3.25 |
| ZR160KC-TFD-522 |
380V/460V50Hz/ 60Hz;3P |
209.1 | 13 | 160000 | 13900 | 28 | 138 | 3.25 |
| ZR190KC-TFD-522 |
380V/460V50Hz/ 60Hz;3P |
249.2 | 16 | 190000 | 16800 | 34 | 173 | 3.25 |
| ZR250KC-TWD-522 |
380V/460V50Hz /60Hz;3P |
325.2 | 20 | 249900 | 21700 | 30 | 225 | 4.67 |
| ZR310KC-TWD-522 |
380V/460V50Hz /60Hz;3P |
410.6 | 25 | 306000 | 27100 | 38 | 272 | 6.8 |
| ZR380KC-TWD-522 |
380V/460V50Hz/ 60Hz;3P |
502.7 | 32 | 379000 | 32700 | 45 | 310 | 6.3 |
