HOME > PRODUCT > Industrial Chiller > THZL-20AF Air Cooled Chiller Industrial Chilling Equipment

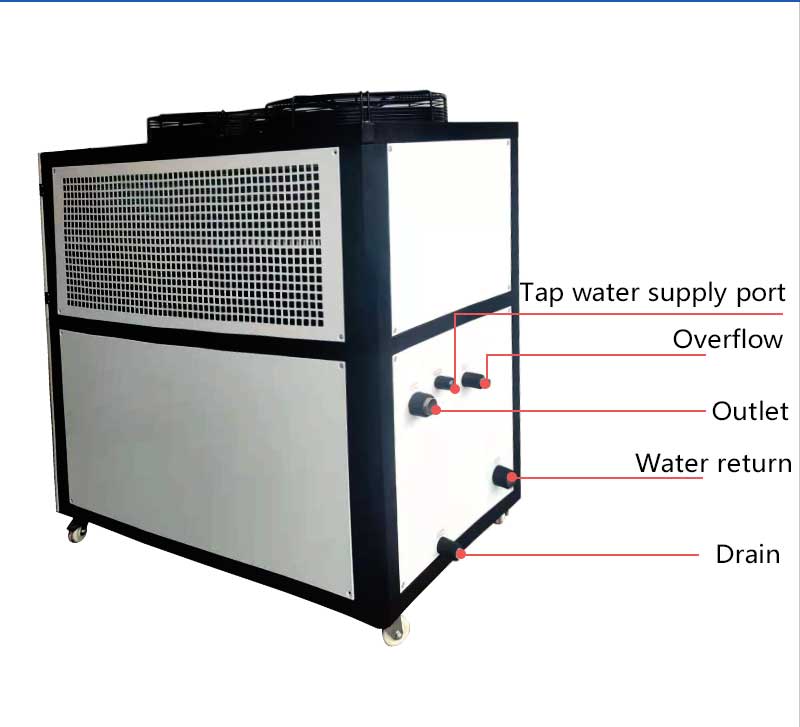

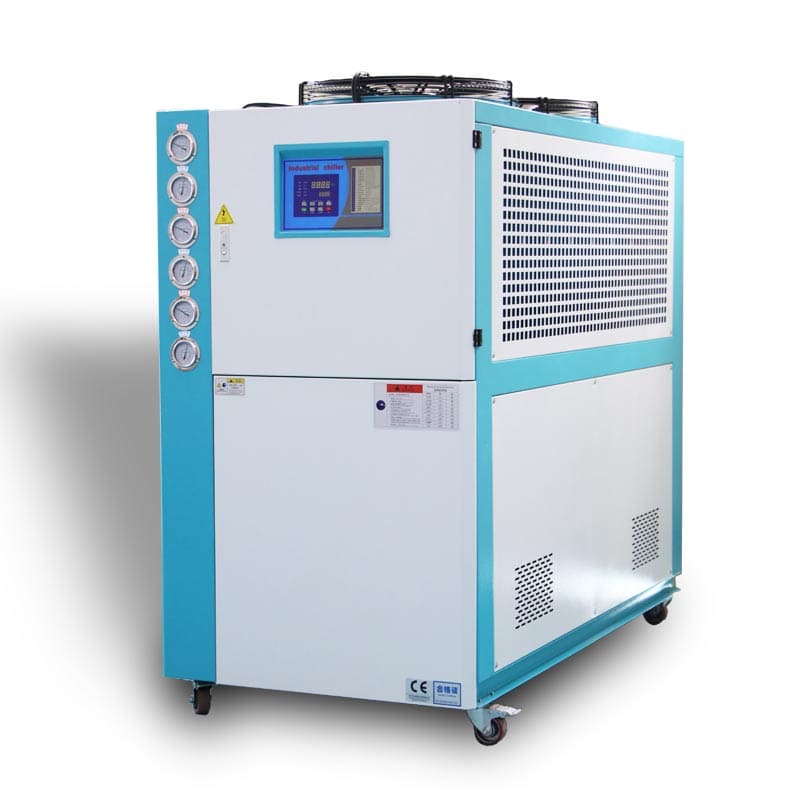

THZL-20AF Air Cooled Chiller Industrial Chilling Equipment
Modela THZL-20AF
Capacity KW/hr 50Hz 59.08
Kcal 50Hz 50805
Total Power KW 18.95
Refrigerant R22
Size L/mm 1900
W/mm 1000
H/mm 1870
Weight KG 590
SERIES RECOMMEND
PRODUCT DETAIL
Model THZL-15AF THZL-20AF THZL-25AF THZL-30AF THZL-40AF THZL-50AF THZL-60AF
Capacity KW/hr 50Hz 44.15 59.08 71.72 87.2 113.58 135.49 181.68
Kcal 50Hz 37965 50805 61683 74992 97675 116521 156249
Temperature Control Range 5℃ to normal temperature (0℃ can be customized)
Power Supply 5N-380V 50Hz
Total Power KW 13.85 18.95 25.05 28.30 37.15 47.80 55.60
Control Method Capillary

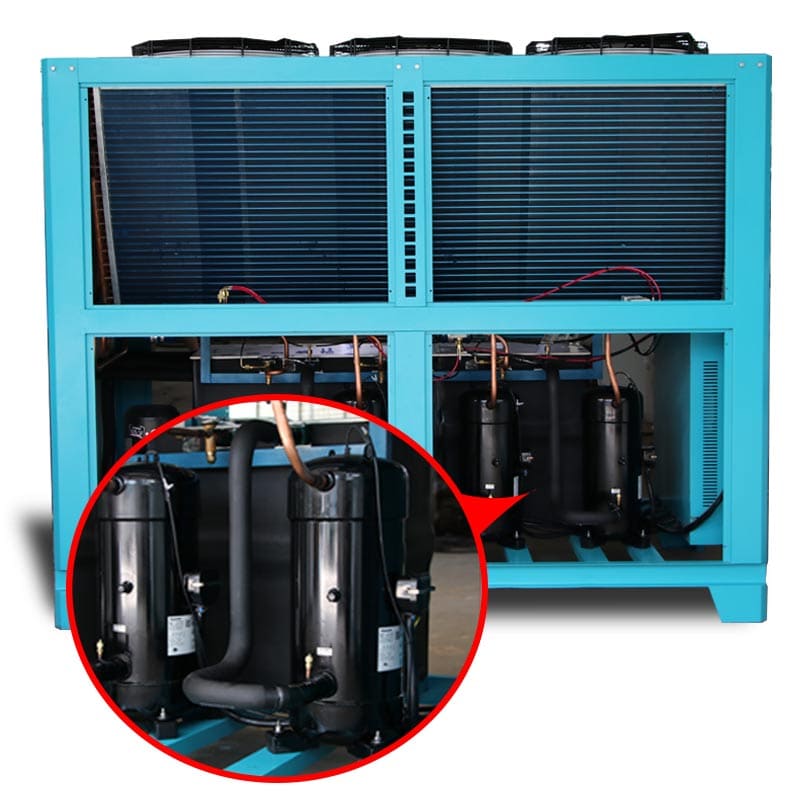

Compressor Type Hermetic scroll compressor or piston compressor
Quantity 3 2 2 3 4 4 6
Power(kw) 11.25 15.00 18.75 22.00 30.00 37.50 45.00
Refrigerant R22

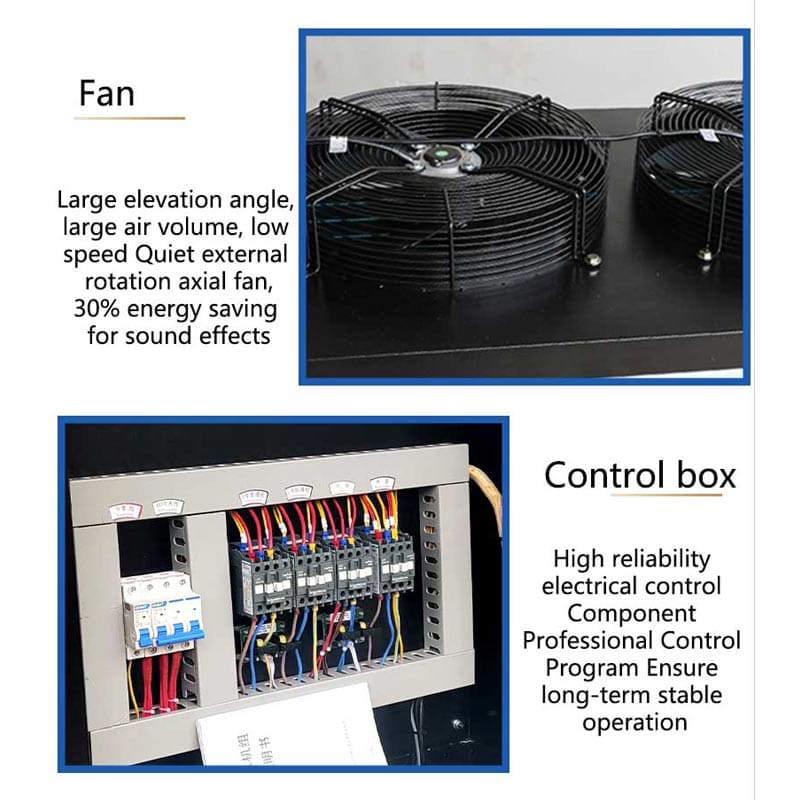

Fan Total Air Volume (m³/h) 15000 21600 32400 32400 43200 57000 64800
Quantity 2 2 3 3 4 6 6
Total Power(kw) 1.1 1.7 2.55 2.55 3.4 4.8 5.1

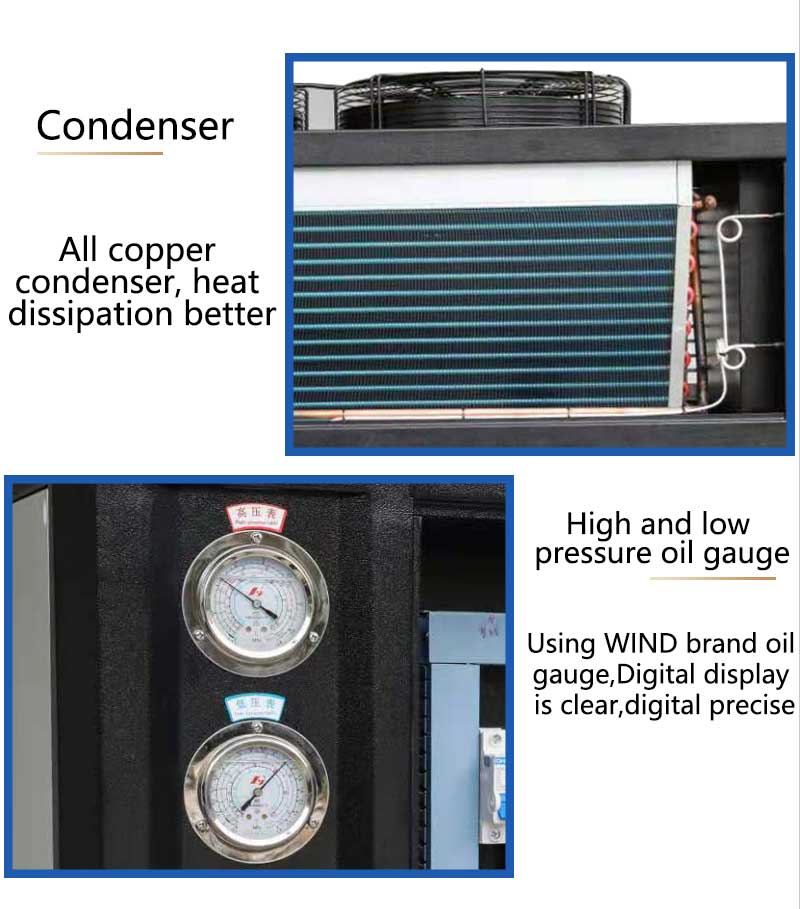

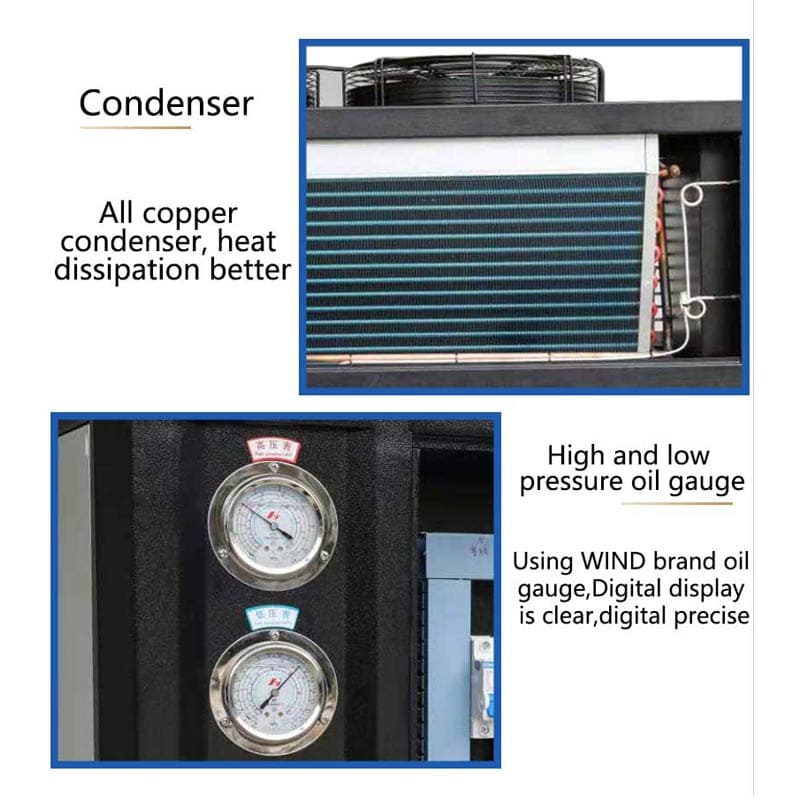

Condenser Type High-efficiency copper tube sleeve corrugated aluminum fin
Evaporator Water Volume (m³/h) 7.60 10.16 0.32 0.32 0.61 0.66 0.72
Capacity(L) 195 280 340 340 250 250 250
Caliber(OUTER) DN50 DN65 DN80 DN80 DN80 DN100 DN100

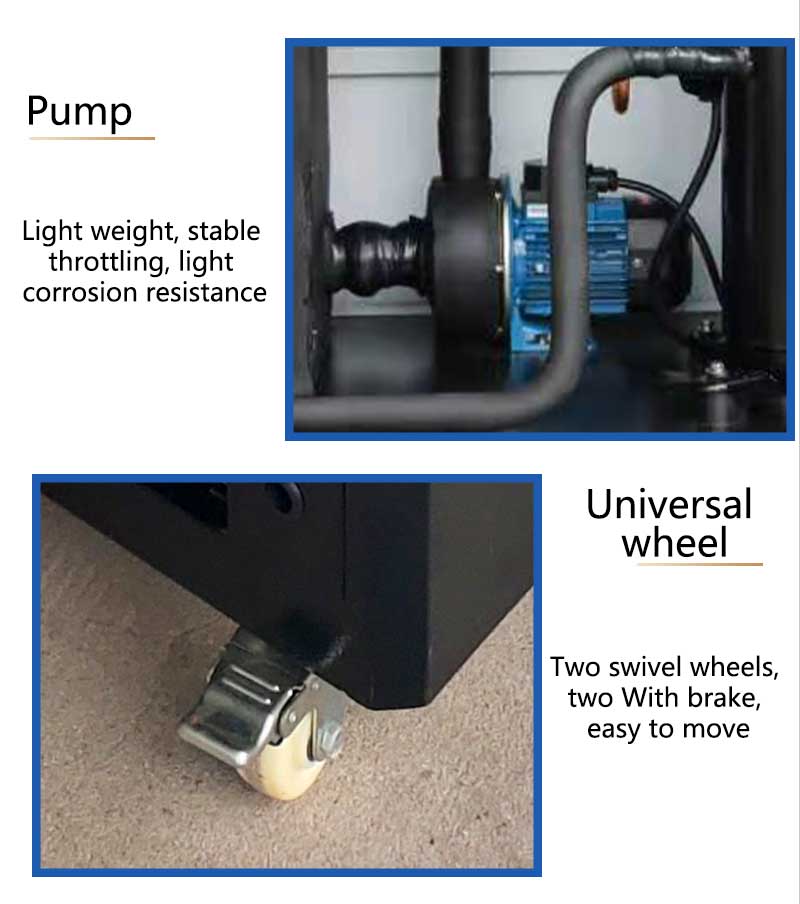

Circulating Pump Power(kw) 1.50 2.25 3.75 3.75 3.75 5.5 5.5
Flow(L/MIN) 340 500 800 800 800 1000 1000
Head(M) 17 17 18 18 18 20 20
Size L/mm 1750 1900 2370 2370 2300 2300 2370
W/mm 850 1000 1120 1120 1900 1900 1900
H/mm 1600 1870 1950 1950 2000 2000 2000
Weight KG 480 590 790 880 1000 1280 1420
Notice: The above specifications and parameters are all measured manually, and the actual product shall prevail.
