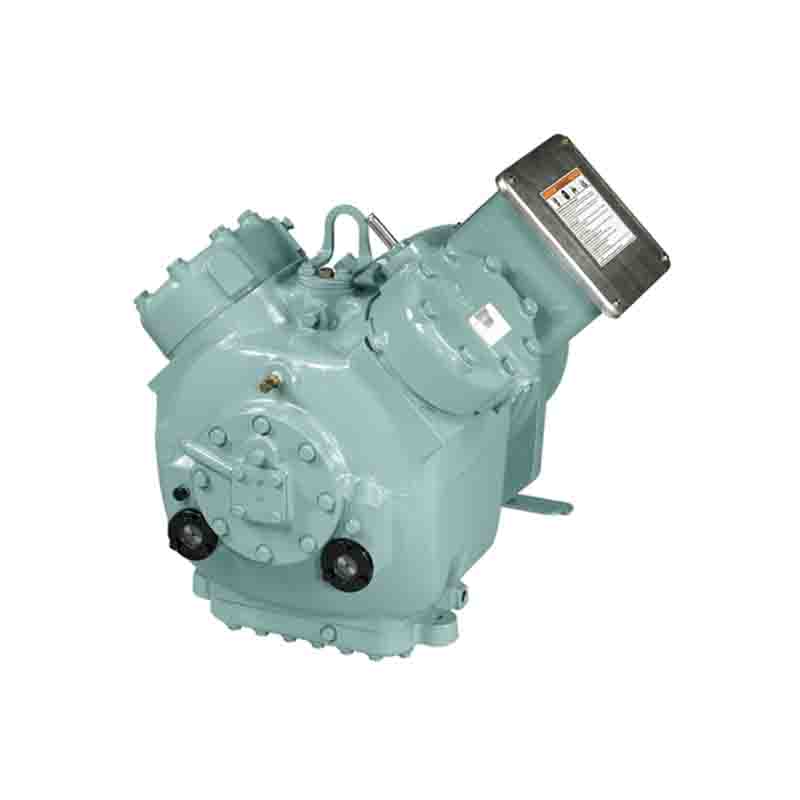

> 06EA550 Carrier Cold Room Semi-hermetic Compressor
| Carlyle OEM Model Number | Carlyle Service Replacement Model | Temp. Range R404a | Motor Size HP | CFM | CFH | No. of Cyl |
No. of
Heads
|
Potential Unloading Stages | Oil Charge Pints |
Low Temp.
EER
R404a @
-25/100/65
|
Med Temp.
EER
R404a @ 20/110/65
|
| 06ER450… | 06EY450… | -40 to 0 | 15 | 50.3 | 3016 | 4 | 2 | 1 | 14 | 5.2 | |
| 06EM450… | 06EZ450… | 0 to 30 | 15 | 50.3 | 3016 | 4 | 2 | 1 | 14 | 8.7 | |
| 06EA550… | 06ET550… | 0 to 50 | 20 | 50.3 | 3016 | 4 | 2 | 1 | 14 | 8.3 | |
| 06ER166… | 06EY466… | -40 to 0 | 20 | 66.0 | 3960 | 4 | 2 | 1 | 14 | 5.3 | |
| 06EM266… | 06EZ266… | 0 to 45 | 25 | 66.0 | 3960 | 4 | 2 | 1 | 14 | 8.7 | |
| 06ER465… | 06EY465… | -40 to 0 | 20 | 68.3 | 4096 | 6 | 3 | 2 | 19 | 5.5 | |
| 06EA565… | 06ET265… | 0 to 50 | 25 | 68.3 | 4096 | 6 | 3 | 2 | 19 | 8.8 | |
| 06ER475… | 06EY475… | -40 to 0 | 20 | 75.4 | 4524 | 6 | 3 | 2 | 19 | 5.3 | |
| 06EM475… | 06EZ475… | 0 to 40 | 25 | 75.4 | 4524 | 6 | 3 | 2 | 19 | 8.9 | |
| 06EA575… | 06ET275… | 0 to 50 | 30 | 75.4 | 4524 | 6 | 3 | 2 | 19 | 8.9 | |
| 06ER399… | 06EY399… | -40 to 0 | 30 | 99.0 | 5940 | 6 | 3 | 2 | 19 | 5.1 | |
| 06EM499… | 06EZ499… | 0 to 40 | 35 | 99.0 | 5940 | 6 | 3 | 2 | 19 | 8.6 | |
| 06EA599… | 06ET299… | 0 to 50 | 40 | 99.0 | 5940 | 6 | 3 | 2 | 19 | 8.6 |
