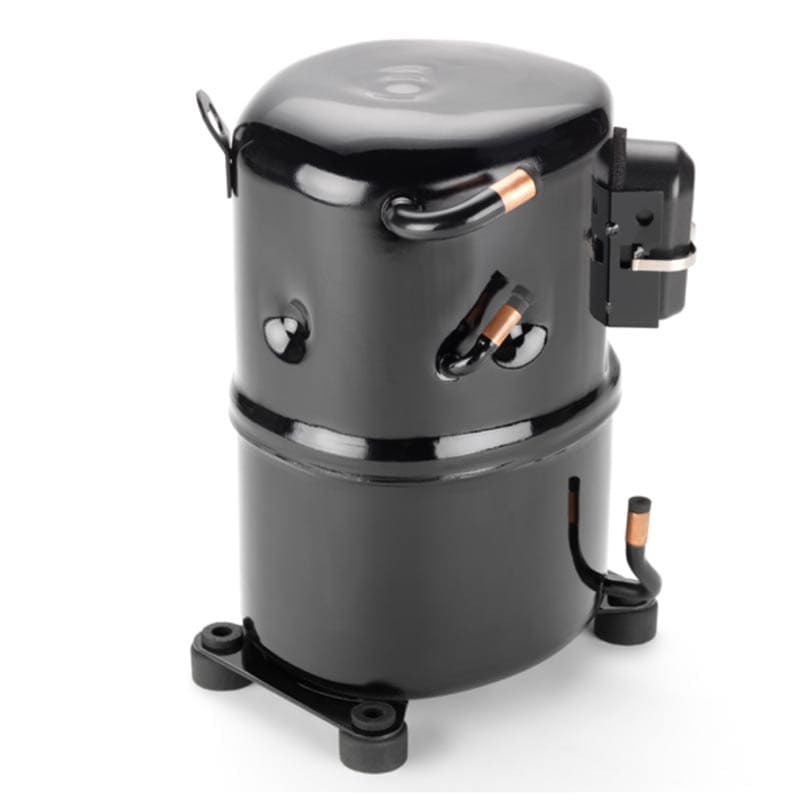

> CAJ2432Z Tecumseh Refrigeration Piston Compressor
| Model |
Nominal power (HP) |
Cylinder displacement (m3/h) |
oil load (cm²) |
50Hz cooling capacity, test standard evaporating temperature at 54.5°C condensing temperature | ||||||
| -45℃ | -40℃ | -35℃ | -30℃ | -23.3℃ | -20℃ | -10℃ | ||||
| R12 | ||||||||||
| AE1410A | 1/3 | 12.05 | 450 | 105 | 158 | 250 | 304 | 510 | ||
| CAE2410A | 1/3 | 12.05 | 450 | 105 | 158 | 250 | 304 | 510 | ||
| AE1412A | 3/8 | 14.15 | 450 | 141 | 202 | 311 | 376 | 634 | ||
| CAE2414A | 3/8 | 14.15 | 450 | 141 | 202 | 311 | 376 | 634 | ||
| CAJ2T12 | 1/2 | 26.15 | 887 | 167⑤ | 186③ | 253 | 377 | 611 | 750 | 1238 |
| CAH2445A | 1/2 | 53.2 | 1625 | 133⑤ | 271③ | 442 | 770 | 1245 | 1520 | 2512 |
| TAH2445A | ||||||||||
| CAH2466A | 1/2 | 74.25 | 1625 | 371⑤ | 479③ | 667 | 1045 | 1617 | 1925 | 3100 |
| TAH2466A | ||||||||||
| R502 | ||||||||||
| AE1417L | 1/2 | 11.3 | 450 | 103⑤ | 96 | 188 | 293 | 449 | 533 | 855 |
| CAE2417L | 1/2 | 11.3 | 450 | 103⑤ | 96 | 188 | 293 | 449 | 533 | 855 |
| CAJ2428L | 5/8 | 15.2 | 887 | 98.6⑤ | 105 | 232 | 390 | 620 | 759 | 1204 |
| TAJ2428L | ||||||||||
| CAJ2432L | 3/4 | 18.3 | 887 | 89.3⑤ | 140 | 290 | 490 | 787 | 960 | 1510 |
| CAJ2446L | 1/1 | 26.15 | 887 | 325⑤ | 270 | 498 | 754 | 1106 | 1305 | 2060 |
| TAJ2446L | ||||||||||
| CAJ2464L | 1/2 | 34.45 | 887 | 311⑤ | 324 | 620 | 1000 | 1583 | 1890 | 2950 |
| TAJ2464L | ||||||||||
| TAH2480J | 2 | 53.2 | 1625 | 704⑤ | 495 | 872 | 1336 | 2068 | 2505 | 4183 |
| TAH2511K | 3 | 74.25 | 1625 | 820⑤ | 695 | 1190 | 1800 | 2717 | 3245 | 5015 |
| TAHD2516J | 4 | 106.4 | 1625 | 1057⑤ | 990 | 1744 | 2672 | 4131 | 5010 | 8366 |
| TAHD2522K | 6 | 148.5 | 1625 | 168⑤ | 1390 | 2380 | 3600 | 5435 | 6490 | 10030 |
| TAG2516K | 4 | 112.5 | 1960 | 1696⑤ | 976 | 1711 | 2683 | 4358 | 6340 | 8947 |
| TAG2522K | 6 | 134.8 | 1960 | 2541⑤ | 1446 | 2306 | 3460 | 5469 | 6653 | 11024 |
| R134a | ||||||||||
| AE1410Y | 1/3 | 12.1 | 450 | 92 | 151 | 259 | 324 | 566 | ||
| CAE2410Y | 1/3 | 12.1 | 450 | 92 | 151 | 259 | 324 | 566 | ||
| AE1412Y | 3/8 | 14.15 | 450 | 96 | 174 | 306 | 383 | 663 | ||
| CAE2412Y | 3/8 | 14.15 | 450 | 96 | 174 | 306 | 383 | 663 | ||
| CAE2414Y | 7/16 | 16 | 450 | 124 | 210 | 360 | 445 | 743 | ||
| R404A | ||||||||||
| CAE2417Z | 7/16 | 11.3 | 450 | 37.8⑤ | 62 | 161 | 176 | 454 | 551 | 890 |
| CAE2420Z | 1/2 | 12.54 | 450 | 194⑤ | 179 | 267 | 377 | 560 | 665 | 1044 |
| CAE2424Z | 5/8 | 15 | 450 | 228⑤ | 180 | 291 | 430 | 657 | 787 | 1252 |
| CAJ2432Z | 3/4 | 18.3 | 887 | 331⑤ | 265③ | 318 | 510 | 792 | 950 | 1256 |
| CAJ2446Z | 1 | 26.15 | 887 | 702⑤ | 575③ | 549 | 797 | 1194 | 1423 | 2290 |
| TAJ2446Z | ||||||||||
| CAJ2464Z | 1/2 | 34.45 | 887 | 805⑤ | 626③ | 723 | 1076 | 1605 | 1902 | 3012 |
| TAJ2464Z | ||||||||||
| FH2480Z | 2 | 53.2 | 1625 | 292⑤ | 420③ | 738 | 1319 | 2183 | 2662 | 4419 |
| TFH2480Z | ||||||||||
| FH2511Z | 3 | 74.25 | 1625 | 1561⑤ | 1203③ | 1380 | 2016 | 3135 | 3796 | 6222 |
| TFH2511Z | ||||||||||
| TAG2516Z | 4 | 11.25 | 1960 | 1407⑤ | 1407③ | 1743 | 2704 | 4356 | 5335 | 9038 |
| TAG2522Z | 6 | 134.8 | 1960 | 2012⑤ | 2012③ | 2378 | 3542 | 5522 | 6688 | 11062 |
| TAGD2532Z | 8 | 225 | 3920 | 2814⑤ | 2814③ | 3486 | 5409 | 8712 | 10671 | 18076 |
| TAGD2544Z | 12 | 269.6 | 3920 | 4024⑤ | 4, 024③ | 4756 | 7084 | 11044 | 13376 | 22125 |
